    Armored Outdoor Fiber Optical Cable Double PE Sheath GYFTA53

    Ask Lasest Price
    Brand Name : HAOKAI
    Model Number : GYFTA53
    Certification : ROHS/ISO/UL/SGS
    Price : By negotiation
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 100000m/1day
    Delivery Time : 1-5work days
    • Product Details
    • Company Profile

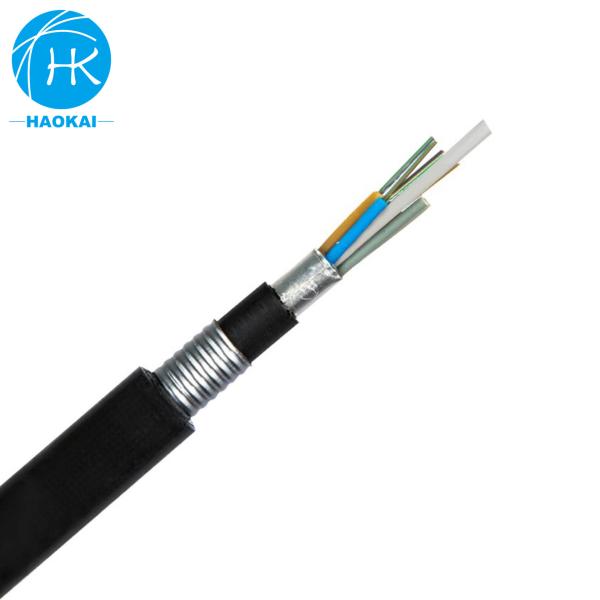

    Armored Outdoor Fiber Optical Cable Double PE Sheath GYFTA53


    Product application
    Piercing
    Overhead
    Direct Buried


    Product characteristics

    Has good mechanical properties and temperature characteristics.
    The loose sleeve material itself has good hydrolysis resistance and high strength
    The pipe is filled with special ointment to protect the optical fiber critically.
    Good compression resistance and softness
    The following measures are adopted to ensure the waterproof performance of optical cables:
    -Single metal center strengthening core
    -Loose sleeve filled with special waterproof compound
    -Full core filling
    -plastic coated aluminum tape (APL) moisture barrier

    -Full core filling
    -plastic coated aluminum tape (APL) moisture barrier

    -Double-sided plastic coated steel strip (PSP) improves moisture permeability of optical cables

    -Good water blocking material prevents longitudinal water seepage of optical cables


    Cable Parameters

    Fiber ModelTube Dia. mmJacket thickness mmCable OD. mmWeight kg/kmTensile resistance
    Long/short term
    N
    Crush resistance
    Long/short term N/100mm
    GYTA53-2 ~ 36Xn51211.61401000/3000300/1000
    GYTA53-48 ~ 60Xn51212.51701000/3000300/1000
    GYTA53-64 ~ 72Xn612131751000/3000300/1000
    GYTA53-96Xn81214.52051000/3000300/1000
    GYTA53-122 ~ 144Xn121217.53001000/3000300/1000
