Brand Name : | HAOKAI |
Model Number : | GYTA |
Certification : | ROHS/ISO/UL/SGS |
Price : | By negotiation |
Payment Terms : | T/T, Western Union, MoneyGram, L/C |
Supply Ability : | 10000m/1day |
Delivery Time : | 1-5work days |

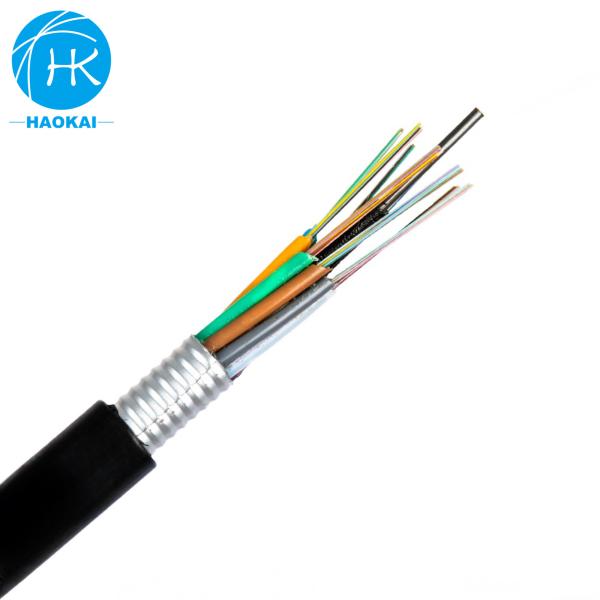

Waterproof GYTA Outdoor Fiber Cable With Single Steel Wire Center Reinforcement
Product application
● piercing
● Overhead
Product characteristics
● Has good mechanical properties and temperature characteristics.
● The loose sleeve material itself has good hydrolysis resistance and
high strength.
● Specially designed tight optical cable structure effectively
prevents sleeve retraction
● PE sheath has good UV radiation resistance
●The following measures are adopted to ensure the waterproof
performance of optical cables:
-Single steel wire center reinforcement core
-Loose sleeve filled with special waterproof compound
-Full core filling
-plastic coated aluminum tape (APL) moisture barrier
Cable Parameters
Fiber Model | Tube Dia. mm | Jacket thickness mm | Cable OD. mm | Weight kg/km | Tensile resistance Long/short term N | Crush resistance Long/short term N/100mm |
GYTA-2 ~ 36Xn | 5 | 12 | 9.2 | 85 | 600/1500 | 300/1000 |
GYTA-48 ~ 60Xn | 5 | 12 | 10.0 | 100 | 600/1500 | 300/1000 |
GYTA-64 ~ 72Xn | 6 | 12 | 11.0 | 120 | 600/1500 | 300/1000 |
GYTA-96Xn | 8 | 12 | 12.5 | 140 | 600/1500 | 300/1000 |
GYTA-122 ~ 144Xn | 12 | 12 | 15.5 | 230 | 600/2500 | 300/1000 |
